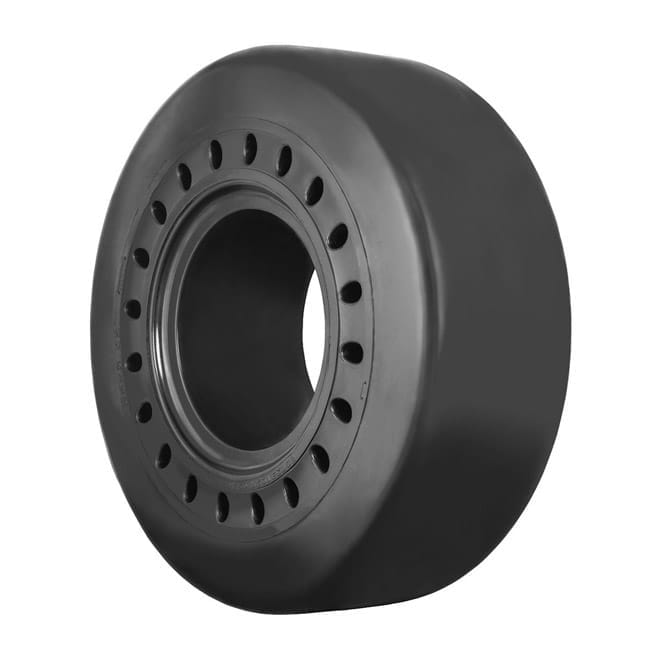

Brawler装载机光面胎（带减震孔）
Brawler HPS（高性能实心胎）轮胎非常适合极端条件环境。
Brawler HPS（高性能实心胎）轮胎非常适合极端条件环境，包括废金属回收、垃圾转运站和采矿作业。• 橡胶耐磨性最高是充气胎的3倍
• 适配于OEM主机厂轮辋
• 椭圆孔提供舒适的驾驶
• 深达7英寸的定制胎面花纹设计
下载
From instructions and advice to tips and sizing details , these PDFs cover all the information you will need on the Brawler HPS Solidflex Smooth.
技术数据
| Tire Size | Alternative Size |
Rim |
Overall Diameter [mm] |
Section Width [mm] |
Tread Depth [mm] |
Load Capacity 10 km/h [kg] |
| 17.5-25 | 445/80-25 | 14.0-25 | 1.340 | 446 | 155 |
8.805 |
| 20.5-25 | 525/80-25 | 17.0-25 |
1.495 | 527 |
188 | 12.155 |
| 23.5-25 | 605/80-25 | 19.5-25 |
1.630 | 606 | 216 |
15.320 |
| 26.5-25 | 685/80-25 | 22.0-25 |
1.715 | 718 | 236 | 18.295 |
| 29.5-25 | 25.0-25 | 1.845 | 761 | 264 | 22.540 | |
| 18.00-33 | 13.0-33 | 1.816 | 457 | 216 | 12.000 |
| Tire Size | Alternative Size |
Rim Size |
Overall Diameter [mm] |
Section Width [mm] |
Tread Depth [mm] |
Load Capacity 10km/h [kg] |
| 17.5-25 | 445/80-25 | 14.0-25 | 1.340 | 446 | 155 |
8.805 |
| 20.5-25 | 525/80-25 | 17.0-25 | 1.495 | 527 |
188 | 12.155 |
| 23.5-25 | 605/80-25 | 19.5-25 | 1.630 | 606 | 216 |
15.320 |
| 26.5-25 | 685/80-25 | 22.0-25 | 1.715 | 718 | 236 | 18.295 |
| 29.5-25 | 25.0-25 |
1.845 |
761 |
264 |
2.2540 |
